Slip Resistance

Slip Resistance

Avoiding a slip-up when choosing safety flooring

Safety flooring is typically specified in areas where there is a risk of spillage or wetness and is used to protect against an unsafe slip hazard.

Making a good choice of slip resistant flooring can be a challenge for specifiers, partly because, not all products offered on the market as slip resistant floors pass the same stringent tests that demonstrate sustainable slip resistance for the life of the product. Many products available in the market are promoted as slip resistant floors with the products slip resistant chracteristics that are being promoted based on ex-factory tests such as the ‘R’ ratings which are derived from ‘the ramp test’, which are not sustainable.

So what is slip resistance?

Quite simply, enhanced slip resistance is achieved by increasing the friction between the foot and the floor, to give underfoot protection in areas where spillages can occur. This friction increase is obtained through the combination of safety aggregates and particles within the floor such as quartz, aluminium oxide, recycled natural aggregates, and silicon carbide.

When a contaminant such as water enters the floor area, this creates a ‘squeeze film’ between foot and floor. A particle-based safety flooring will provide enough roughness to break through this squeeze film and ensure foot-to-floor contact.

However, a flooring without particles and just an emboss will be a relatively smooth surface, and in wet conditions will provide a high risk of the user slipping on the floor due to the squeeze film not being broken.

Use of aggregates

In genuine safety floorcoverings, these aggregates are not simply sprinkled onto the top as a coating that will wear off over
a short time of use. Instead, aggregates are incorporated through the full thickness of the product’s wear layer to ensure
sustainable wet slip performance for the guaranteed life of the product.

The aggregates combine with the floor’s surface emboss to provide a rougher, harder friction surface to ‘bite’ into the under surface of footwear when walked upon, and create the necessary traction, durability, and continuous underfoot safety.

Specifying safety flooring

Slip resistance can be a confusing area for specifier and client alike. On one hand there is a requirement to specify safety flooring that is safe and fit for use, against a background of increasing awareness, and litigation in the case of slips and trips. On the other hand, there is a plethora of test methods to assess the slipperiness of floors, various manufacturer claims and competing products to complicate choice.

Polyflor always gives the same two key pieces of advice to someone specifying slip-resistant flooring:

  • Use a reputable manufacturer that can demonstrate previous experience in the areas you are working on.
  • Ask for advice – use the manufacturer’s customer service team and the company’s expertise to help you specify the right product. The manufacturer is there to help you.

Not a sole solution

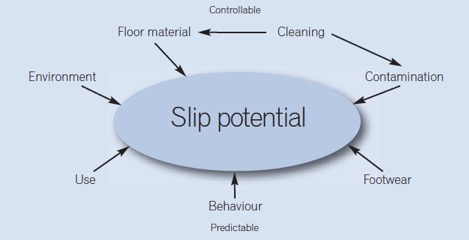

Remember that when carrying out initial risk assessments to determine the factors that could cause slip incidents within a
healthcare environment, the specification of appropriate flooring should not be seen as the sole, one-dimensional solution to
minimising these risks. The Health and Safety Executive (HSE), in England, points to other factors which have an impact on slip risks, including the type of footwear used, drainage and expected floor contaminants, likely cleaning regimes, and the different types of use the floor is subjected to by pedestrians, including individual gaits and human behaviour when walking.

What makes a safety floor?

A good safety floor product should retain its performance characteristics and decoration, demonstrating outstanding
durability and abrasion resistance. In terms of safety floor credentials, all products specified to provide slip resistance in wet conditions should meet EN 13845, the European standard for particle-based safety flooring. Product claims that show conformance to other flooring standards, such as EN ISO 10581/10582, EN 649, EN 548, EN 12199, and EN 1817, mean the flooring is not classified as a true slip-resistant surface, and therefore is not a safety floor.

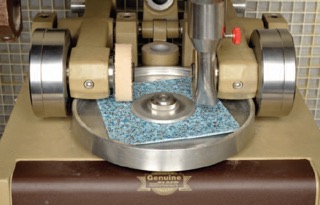

To meet the criteria for the EN 13845 standard, safety flooring must pass the 50,000 cycles abrasion test (EN 660-2) to
demonstrate the longevity of the aggregates and their performance, ensuring the long-term, sustainable slip resistance of the product. This stringent test procedure involves constant cycles of abrasion under pressure, with continuous application of grit to replicate accelerated wear over time.

Sustainable performance is key when measuring the slip resistance of safety flooring. Safety floor ranges can also be
independently assessed and certified by the British Board of Agrément (BBA), indicating that the products are fit for their intended use for at least 10 years provided that they are installed to the manufacturer’s instructions. Generally, if safety flooring is used in appropriate areas and maintained correctly, the slip resistance will tend to improve with age. Over time, the more abrasive aggregates will be left behind, and will still be carrying out the job of imparting the necessary slip resistance in years to come.

‘Pseudo’ products

Products currently being sold as, ‘safety floors’ in some instances only have very thin coatings of aggregate applied, or
include a slightly rougher surface emboss and no embedded particles. These products pass ex-factory ramp tests, but only offer short-term slip resistance that reduces after installation, maintenance, and wear. In terms of sustainable slip performance, these products offer no credible substitute to a safety vinyl containing aggregates all the way through the performance layer. This leaves a specifier or contractor who puts these ‘pseudo’ safety floor products forward on a project in a potentially difficult position in terms of their duty of care to their clients, and ultimately to their clients’ ‘customers’.

Where do the specifier and installer stand if there is a slip issue a few years down the line, and the product fails to perform to the correct levels? The wrong product can easily be installed when a specifier has received misleading information, and is now confused about the true definition of a sustainable, slip-resistant safety floor.

Testing safety floors

Safety floors can be subjected to a variety of international test methods for measuring slip resistance, the results of which should be made readily available by the manufacturer. To further complicate matters, some test methods are more
valuable and trustworthy indicators of slip resistance than others.

The Pendulum test

The Pendulum test method in North America is published as ASTM E303. It is the method of choice in the UK and Europe and is now a recognized standard for measuring pedestrian slip resistance in 49 countries. While it is the most widely recognized test method globally it continues to be recognized less as a method in North America although that is slowly changing. The Pendulum test method is used to assess the dynamic coefficient of friction of a floorcovering, achieved by swinging a dummy heel over the floor surface to simulate a foot slipping on a wet floor. A standardised rubber sole sample is used on the foot of the pendulum to represent a standard shoe sole of average slip resistance. The greatest strength of this test is that the machine is highly portable, and can easily be used in situ, so the slip resistance of the floor can be assessed over its entire life.

Health & Safety Executive guidelines call for a floor to give a pendulum test value of 36 and above in the wet to be classified as low slip potential, with results quoted using a Four S (Slider 96) rubber slider. This equates to a slip risk level of one in a million if the flooring is installed correctly. While floor surfaces can be tested in the wet or dry, always look out for the wet result, as this is the condition in which slipping is likely to occur. If specifying for wet areas where safety flooring is required, products with very high Pendulum results in the dry quoted in isolation should be avoided.

For floorcoverings in continually wet areas such as walk-in showers, a softer TRL (Slider 55) rubber slider is used on the pendulum foot to simulate the act of a bare foot or a user with soft-soled footwear slipping on a floor. The same requirement of meeting 36 or above is needed to give a low slip risk potential classification.

Surface microroughness test

The surface roughness test is another on-site test method which can be used in conjunction with the Pendulum test, and
is particularly useful for measuring changes in the surface condition of the floor. The test involves measuring the total surface microroughness of the flooring with a surface roughness meter.

A mean value of several peak to valley measurements is electronically calculated on the surface by tracing a needle over the
floor at various points. All safety floor products should achieve a result exceeding Rz 20μm (20 microns), which meets HSE guidance, and means products are classed as offering low slip potential in water-wet pedestrian areas. The surface roughness of the flooring must be sufficient in order to penetrate the squeeze films created when there is a presence of wet contaminants between shoe sole and the floor that prevents solid to solid contact. The surface roughness that the floor requires is governed by the viscosity level of liquid contaminants in the application area. The more viscous the contaminant, the higher level of surface roughness is required for the flooring to penetrate this squeeze film and achieve continued friction between foot and floor. In commercial kitchen areas within a healthcare environment, where high viscosity contaminants such as cooking oil or margarine are present, the floor needs to have a minimum surface roughness level of 70 microns.

The Ramp test (DIN 51130 & DIN 51097)

It is generally known and accepted in the market by flooring professionals that if true slip-resistant safety flooring is
required, then solely basing a specification on R values from a Ramp test can be misleading for end-clients and users. This
test involves a person with work boots walking over a flooring sample on an inclined ramp in the presence of an oil contaminant. The resulting level of degrees the ramp can be inclined before the operator slips is categorised into
appropriate ‘R’ Values – running from R9 up to R13. This test has been commonly used in Europe, especially in the ceramic flooring sector.

It is believed that the Ramp test can be used to mislead. Firstly, a common misconception is that the R scale runs from R1 to R13, with R1 being the most slippery. In fact, an R9-rated product is classified as the floor with the most slipperiness. This allows an opportunity for manufacturers to offer products as specialist, slip-resistant surfaces, purely based on ex-factory ratings.

Traditionally, safety flooring achieves an R10 rating, but a specification should not be made solely on this information.

Furthermore, the Ramp test is carried out ex-factory, and is not practical to replicate on site, and thus gives no reliable
measure of performance and wear over the life of the floor, as is possible with the Pendulum and surface roughness tests. A
product with no particles within its wear layer, which is reliant on a rough emboss to achieve initial slip resistance, will
provide only a transient solution. Once the emboss wears, no particles will be underneath to generate the required friction between foot and floor. Products with a rough emboss but no embedded particles may be sold as safety flooring with an ex-factory R10 or R11 rating, but, once the emboss wears, this will leave a smooth floor that is not slip-resistant in wet conditions. Therefore, ranges sold solely on their associated R values cannot be considered safety floors that meet the
HSE’s low slip potential classification.

The UK Slip Resistance Group (UKSRG) also finds that the Ramp test does not correlate at all with the Pendulum test, because of the difference in type of contaminants used, and the more industrial type of footwear used by the operator in the Ramp test.

A ramp test can also be undertaken where the operator is barefoot, with soap solution as the contaminant. Floors are categorised into three classifications – A, B, and C, depending on the angle where the operator slips. As with the shod ramp test, specifying a safety floor for barefoot areas using only Ramp test results should be avoided.

James Machine

The most common test method for resilient floors in both Canada and the U.S. is ASTM 2047 which uses the James Machine. This test uses a stationary object and tests the force required to pull it over the floor. This is expressed as the Static Coefficient of Friction (SCOF). Therefore if you were standing still the test would determine the force required to move your feet across the surface of the floor. There is only part relevance between this test and how people actually slip and fall when walking.

The test utilizes a shoe sole grade leather material attached to a weighted plate. The leather material is pulled across the surface of the specimen and the friction resistance is recorded on a graph.

The test procedure is designed for determining “dry” coefficient of friction measurements only, but many manufacturers perform the tests by applying a mist of water to the specimen surface and obtain “wet” friction values for their products.

Due to the wide range of probable variation due to the lack of any specifics relating to water application to the specimen surface, the “wet” values should be considered only as reference values.

The Federal Standard for flooring materials and floor finishes is 0.5. This value of not less than 0.5 meets the requirements for compliance to Rule 5 on “The use of terms slip retardant, slip resistant, or terms of similar import,” of the Proposed Trade Practice Rules for the Floor Wax and Floor Polish Industry as issued by the Federal Trade Commission on March 17, 1953.

The A.D.A recommendations are 0.6 for accessible routes and 0.8 for ramps, but were developed utilizing an apparatus and test method not currently recognized in the industry. Since the release of the A.D.A. document, several committees have meet with the A.D.A. and requested clarification. The outcome of the meetings resulted in the A.D.A. recognizing the ASTM D-2047 test method and federal standard of 0.5 for defining the term “slip-resistant surface”, as listed in section 4.5 General and Floor Surfaces. The values of 0.6 for accessible routes and 0.8 for ramps are recommendations and will be eliminated from future revisions.

Getting the right look that also performs

Many years ago, a specifier of safety flooring was faced with a simple choice; a product was available in any colour as long as it was grey, with function, rather than form being all important. Fast forward 20 years or so, and the vinyl safety flooring we now see today is a much more sophisticated and a significantly different animal.

Safety flooring is now a combination of both style and substance, with warmer, brighter, and more contemporary designs available, including wood and stone effects, which are far removed from the industrial look of old. These safety floor options that replicate nature are increasingly popular in specialist care environments catering for people living with dementia as well as schools and hospitals.

Advances in design

Thanks to the technological advances from flooring manufacturers such as Polyflor, safety flooring is now a major consideration for developers and specifiers who want to create a ‘wow factor’, but equally to underpin this with underfoot safety that is sustainable for the guaranteed life of the product.

Today’s safety flooring comes in various guises, ranging from subtle, nuanced decorations to vibrant, inventive colours with virtually invisible particles within the vinyl to aid clarity and maintain the overall design. Traditional safety floors, on the
other hand, often include dark aggregate to provide friction which is very visible. Some customers still prefer the dark
aggregate to be seen in their chosen safety floor as a clear indicator that the floor has low slip potential, and these traditional safety floors are generally installed within back-of-house areas.

The advances in safety flooring design, and the incorporation of virtually invisible aggregates, mean that the aesthetic
appearance is now very similar to smooth vinyl floorcoverings which only offer slip resistance in dry conditions. It is therefore important that a product’s slip performance is analysed carefully at the specification stage to ensure the product
meets the relevant standard, abrasion, and Pendulum wet test requirements, and that the right type of product is used in the
correct areas to give underfoot protection in wet areas.

It is important to remember that a clean floor is a safe floor, and to follow the floor care guidance offered by your chosen
flooring manufacturer. The development of protective maintenance enhancements such as Polyflor’s Polysafe PUR
polyurethane reinforcement means improved maintenance benefits, optimum appearance retention, and lifecycle
maintenance cost savings of up to 60%. Any of Polyflor’s Polysafe ranges that feature PUR are enhanced with this super
strength, polyurethane reinforcement, which is cross-linked and UV cured to improve its cleanability, stain resistance
and colour retention.

In conclusion

Everyone in the supply chain has the duty of care to ensure that where safety flooring is required, the selected products
should be both fit for purpose and correctly specified to meet the appropriate particle-based safety flooring standard and abrasion tests. It is fair to say that when sustainable slip resistance in wet conditions is key, it is sensible to consider sticking to manufacturers that you know and trust. It is important that your flooring partner has the knowledge and understanding of sustainable slip resistance and safety flooring development to deliver a product that performs for its guaranteed life, and does the job it is designed for over the long term.
